Questions :
Question :
What are the compression rates and size of the image files in each record mode?
Answer:
The following tables show the approximate values:
[Still Pictures]
The compression rate in Fine mode (shooting at high quality) is 1/4. The rate in Normal mode (shooting at normal quality) is 1/8.
When the aspect rate is 4:3.
| Image Size |
Compression |
Image Capacity without Sound |
File Size (Approx.) |
37 MB
Internal Memory |
4 GB SD / SDHC
/ SDXC Card |
16M
(4608 × 3456) |
Fine |
4 |
460 |
8.9 MB |
| Normal |
8 |
880 |
4.7 MB |
8M
(3200 × 2400) |
Fine |
9 |
900 |
4.6 MB |
| Normal |
16 |
1,630 |
2.5 MB |
3M
(1920 × 1440) |
Fine |
27 |
2,740 |
1.5 MB |
| Normal |
54 |
5,480 |
0.7 MB |
VGA
(640 × 480) |
Fine |
198 |
20,110 |
0.2 MB |
| Normal |
341 |
30,170 |
0.1 MB |
[Movies]
| Image Size / Aspect Ratio |
Image Capacity |
| 37 MB Internal Memory |
4 GB SD / SDHC / SDXC Card |
| with Sound |
without Sound |
with Sound |
without Sound |
1080 60P
(1920 × 1080) |
9 sec. |
9 sec. |
18 min. |
18 min. |
1080P
(1920 × 1080
/ 16:9) |
14 sec. |
15 sec. |
27 min. |
29 min. |
720P
(1280 × 720
/ 16:9) |
27 sec. |
30 sec. |
51 min. |
57 min. |
VGA
(640 × 480
/ 4:3) |
1 min. 6 sec. |
1 min. 28 sec. |
125 min. |
167 min. |
HS120fps
(1280 × 720) |
- |
11 sec. |
- |
21 min. |
HS 240fps
(432 × 324) |
- |
17 sec. |
- |
32 min. |
In regards to the movie recording time:
- Regardless of the card capacity, the maximum file size per movie is 4 GB.
- When recording in 1080 60P, 1080P and 720P format, the maximum recording time per movie is 29 minutes.
- When recording in HS120fps and HS240fps format, the maximum recording time per movie is 20 seconds.
Note:
The amount of storable still pictures and movie recording time is approximate and calculated based on capacity. The actual amounts will differ according to the shooting conditions and other figures. The figures do not guarantee battery life.
Question :
What differentiates the SH-1 from the SH-60?
Answer:
The following table describes the differences:
| |
|
|
| Effective Pixels |
16 million pixels, 1/2.3
CMOS sensor (Color filter)
|
| Monitor |
3.0 inches, Approx. 460,000 dots TFT color LCD |
| Touch Panel |
Available |
| Optical Zoom |
24 x |
| Digital Zoom |
4 x |
| Super-Resolution Zoom |
48 x
* From Wide to Zoom, including optical zoom range |
| Image Processing |
True Pic VII |
True Pic VI |
| Focal Length |
4.5 mm - 108 mm
(25 mm - 600 mm equivalent to 35 mm photography) |
| Live Guide |
Available |
| Interval Shooting |
Available |
Not available |
| Photo Story |
Available |
| Advanced Movie Mode |
Photo in Movie / 60p Movie /
High-Speed Movie / Time Lapse Movie |
Photo in Movie / 60i Movie / High-Speed Movie |
| Art Filter / Magic Filter |
7 art filters
Pop Art, Soft Focus ,
Pale&Light Color, Grainy Film,
Pin Hole, Diorama,
Dramatic Tone
|
11 magic filters
Pop Art, Pin Hole, Fish Eye,
Soft Focus, Punk, Sparkle
Watercolor, Reflection, Miniature,
Fragmented, Dramatic
|
| Picture Mode |
Vivid, Natural, Muted,
Fish Eye, Sparkle, Reflection,
Fragmented, Art Filter
|
Not available |
Image Size
(Still Pictures) |
16M, 8M, 3M, VGA
(Aspect rate can be selected from 4:3, 16:9, 3:2, 1:1.) |
Image Size
(Movie) |
1080 60p (1920 × 1080)
1080P (1920 × 1080)
720P (1280 × 720)
VGA (640 × 480)
HS 120fps (1280 × 720)
HS 240fps (432 × 324)
|
1080 60i (1920 × 1080)
1080P (1920 × 1080)
720P (1280 × 720)
VGA (640 × 480)
HS 120fps (1280 × 720)
HS 240fps (432 × 324)
|
| Built-in Flash |
Available |
| Built-in Wi-Fi |
Available |
Not available |
| Memory |
SD / SDHC / SDXC cards (UHS-I compatible)
Eye-Fi cards |
SD / SDHC / SDXC cards (UHS-I compatible)
Eye-Fi cards, FlashAir |
| Battery |
LI-92B (bundled with the camera) |
LI-90B (bundled with the camera) |
| Number of Shots per Charge |
Approx. 380 shots |
Approx. 310 shots |
| Dimensions |
108.8 mm (W)
×
63.2 mm (H)
×
42.4 mm (D) / 4.3" (W)
×
2.5" (H)
×
1.7" (D) |
112.1 mm (W)
×
63.5 mm (H)
×
42.4 mm (D) / 4.4" (W)
×
2.5" (H)
×
1.7" (D) |
Weight
(Battery and Media Card Included) |
271g |
269g |
| Color |
Silver, Black, White |
| Release Date |
April 2014 |
October 2013 |
Question :
What comes bundled with the camera?
Answer:
The following items are bundled with the camera:
- SH-1 camera
- Lithium-ion Rechargeable Battery (LI-92B)
- USB Cable (CB-USB8)
- USB-AC adapter (F-2AC)
- Strap
- Stylus pen
- OLYMPUS Setup CD-ROM:
OLYMPUS Viewer 3 software (Windows / Mac)
- Instruction Manual
- Warranty Card
Question :
I have inserted a battery in the SH-1, but the camera does not turn on. What should I do?
Answer:

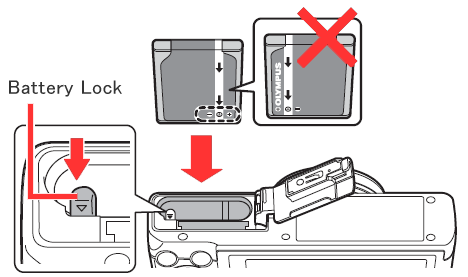

Insert the Lithium-Ion battery (LI-92B) as illustrated below. Place the battery terminal button down and the minus (-) pole to the battery lock side.
If the battery charge does not start even when the USB cable (USB-AC adapter) is connected to the camera, check whether the battery is inserted correctly and the USB cable (USB-AC adapter) is connected securely.
If you are using a power strip (extension cord), try to connect the USB-AC adapter directly to the wall outlet.
Note:
- There is a risk of overheating or explosion if the exterior of the battery is damaged.
- Turn off the camera before opening or closing the battery and media cover.
- Make sure to close and lock the battery and media card cover while using the camera.
Question :
What type of memory card can I use with this model?
Answer:
This model is compatible with SD, SDHC and SDXC cards, including Eye-Fi.
xD-Picture Card™ and CompactFlash® media cannot be used.
Question :
Where can I find the instruction manual for my camera?
Answer:
You can find the manual online. You can either read it online or download the instruction manual for your camera.
See the following Web page to find the available manuals:
 Download Manuals
|
|
