Questions :
Question :
What are the differences between the TG-835, TG-830 and TG-850?
Answer:
The following table describes the differences:
| |
 |
 |
| Effective Pixels |
16 million pixels, 1/2.3, CMOS |
| Image Processor |
True Pic VI |
True Pic VII |
| Monitor |
3.0 inches, 460,000 dots,
TFT color LCD |
3.0 inches, 460,000 dots,
TFT color LCD,
Tilting (the monitor can be tilted by 180 degrees) |
| Optical Zoom |
5x |
| Super-Resolution Zoom |
10x
* From Wide to Zoom, including optical zoom range |
| Digital Zoom |
4x |
| ISO Sensitivity |
ISO 125 - 6400 |
| Focal Length |
5.0 mm - 25.0 mm
(28 mm - 140 mm equivalent in 35 mm photography) |
3.74 mm - 18.7 mm
(21 mm - 105 mm equivalent in 35 mm photography) |
| Interval Shooting |
Not available |
Available (up to 99 frames) |
| Shooting Mode |
P (Program Auto), iAUTO, Magic Mode, Panorama, Advanced Movie mode,
Photo with  Clip mode, Hand-Held Starlight, SCN (Scene Mode) |
P (Program Auto), iAUTO, Super Macro, ART (Art Filters), Panorama, Hand-Held Starlight, e Portrait, SCN (Scene Mode) |
| Scene Mode |
21 Scene modes
Portrait, Beauty,
Landscape, Night Scene, Night + Portrait, Sport, Indoor, Self Portrait, Sunset,
Fireworks, Cuisine, Documents,
Beach & Snow, Snapshot,
Wide1, Wide2,
Macro, Pet Mode (Cat), Pet Mode (Dog),
Super Macro, Backlight HDR |
19 Scene modes
Portrait, Landscape, Interval Shooting,
Night Scene, Night + Portrait, Sport,
Indoor, Self Portrait, Sunset,
Fireworks, Cuisine, Documents,
Beach & Snow, Snapshot, Wide1, Wide2,
Macro, Backlight HDR
CALS+ |
| Art Filters / Magic Filters |
11 Magic filters
Pop Art, Pin Hole, Fish Eye, Soft Focus, Punk, Sparkle, Watercolor, Reflection, Miniature, Fragmented, Dramatic Tone |
7 Art filters
Pop Art, Soft Focus, Pale&Light Color, Grainy Film, Pin Hole, Diorama, Dramatic Tone |
| Picture Mode |
Not available |
Vivid, Natural, Muted, Fish Eye, Sparkle, Reflection, Fragmented, Art Filter |
| Image Size (Still Pictures) |
16M (4608 × 3456)
8M (3200 × 2400)
3M (1920 × 1440)
VGA (640 × 480)
(Selectable from 4:3, 16:9, 3:2, 1:1 aspect ratio) |
16M (4608 × 3456)
8M (3200 × 2400)
3M (1920 × 1440)
CALS+ (1280 × 960)
VGA (640 × 480)
(Selectable from 4:3, 16:9, 3:2, 1:1 aspect ratio) |
| Image Size (Movie) |
1080 60i (1920 × 1080)
1080 (1920 × 1080)
720 (1280 × 720)
VGA (640 × 480)
HS 120fps (640 × 480)
HS 240fps (320 × 240) |
1080 60P (1920 × 1080)
1080 (1920 × 1080)
720 (1280 × 720)
VGA (640 × 480)
HS 120fps (640 × 480)
HS 240fps (320 × 240) |
| GPS, Electronic Compass Function, Logging Function |
Available |
Not available |
| Memory |
SD / SDHC / SDXC cards
(UHS-I compatible, 128MB - 128GB)
Eye-Fi cards, Flash Air |
| Waterproof |
10 m |
| Shockproof |
2.1 m |
| Crushproof |
100 kgf |
| Freezeproof |
-10°C |
| Underwater Housing |
PT-055 |
Not available |
| Battery |
LI-50B |
| Number of Shots per Charge |
Approx. 300 shots |
| Dimensions |
109.5 mm (W)
×
66.5 mm (H)
×
28.4 mm (D) / 4.3" (W)
×
2.6" (H)
×
1.1" (D) |
109.9 mm (W)
×
64.1 mm (H)
×
27.6 mm (D) / 4.3" (W)
×
2.5" (H)
×
1.1" (D) |
| Weight (Battery and Media Card Included) |
214 g |
218 g |
| Color |
TG-835: Blue, Silver
TG-830: Silver, Red, Black |
White, Black |
| Software (Packaged with the Camera) |
OLYMPUS Viewer 3 |
| Release Date |
TG-835: February 2014
TG-830: February 2013 |
March 2014 |
Question :
I have inserted a battery in the TG-835, but the camera does not turn on. What should I do?
Answer:

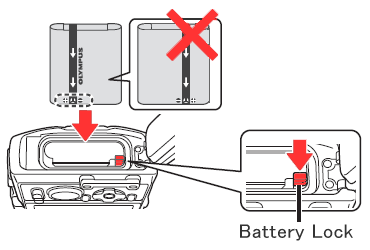

Insert the Lithium-Ion battery (LI-50B) as illustrated below. Place the battery terminal bottom down and the minus (-) pole to the battery lock side.
If the battery charge does not start even when the USB cable (USB-AC adapter) is connected to the camera, check whether the battery is inserted correctly and the USB cable (USB-AC adapter) is connected securely.
If you are using a power strip (extension cord), try to connect the USB-AC adapter directly to the wall outlet.
Note:
- There is a risk of overheating or explosion if the exterior of the battery is damaged.
- Turn off the camera before opening or closing the battery and media card cover.
- Make sure to close and lock the battery and media card cover while using the camera.
Question :
What are the compression rates, and what size are the image files in each record mode?
Answer:
[Still Pictures]
The compression rate in Fine mode (shooting at high quality) is 1/4. The rate in Normal mode (shooting at normal quality) is 1/8.
When the aspect rate is 4:3.
| Image Size |
Compression |
Image Capacity without Sound |
File Size (Approx.) |
39 MB
Internal Memory |
4 GB
SD / SDHC / SDXC Card |
16M
(4608 × 3456) |
Fine |
4 |
460 |
8.9 MB |
| Normal |
9 |
880 |
4.7 MB |
8M
(3200 × 2400) |
Fine |
9 |
900 |
4.6 MB |
| Normal |
17 |
1,630 |
2.5 MB |
3M
(1920 × 1440) |
Fine |
28 |
2,740 |
1.5 MB |
| Normal |
57 |
5,480 |
0.7 MB |
VGA
(640 × 480) |
Fine |
209 |
20,110 |
0.2 MB |
| Normal |
359 |
30,170 |
0.1 MB |
[Movies]
| Image Size / Aspect Ratio |
Image Capacity |
| 39 MB Internal Memory |
4 GB SD / SDHC / SDXC Card |
| with Sound |
without Sound |
with Sound |
without Sound |
1080P
(1920 × 1080
/ 16:9) |
15 sec. |
16 sec. |
27min. |
29 min. |
720P
(1280 × 720
/ 16:9) |
28 sec. |
32 sec. |
51min. |
57 min. |
VGA
(640 × 480
/ 4:3) |
1 min. 10 sec. |
1 min. 33 sec. |
125min. |
167 min. |
HS120fps
(1280 × 720
/ 16:9) |
- |
12 sec. |
- |
21 min. |
HS240fps
(432 × 324
/ 4:3) |
- |
18 sec. |
- |
32 min. |
1080 60i
(1920 × 1080
/ 16:9) |
15 sec. |
16 sec. |
27min. |
29 min. |
In regards to the movie recording time:
- Regardless of the card capacity, the maximum file size per movie is 4 GB.
- When recording in 1080P, 720P and 1080 60i format, the maximum recording time per movie is 29 minutes.
- When recording in HS 120fps and HS 240fps format, the maximum recording time per movie is 20 seconds.
Note:
The amount of storable still pictures and movie recording time is approximate and calculated based on capacity. The actual amounts will differ according to the shooting conditions and other figures.
Question :
What are the optical zoom and digital zoom magnification?
Answer:
Tele and Wide shooting is available with the 5x optical zoom (28 mm - 140 mm equivalent in 35 mm photography).
Use of both the optical zoom and super-resolution zoom can provide approximately 10x zoom shooting.
Use of both the optical zoom and digital zoom can provide approximately 20x zoom shooting.
Digital zoom is OFF in default setting. To use the digital zoom, select Digital Zoom in  (Camera Menu 1) and press the Right arrow pad button. Select ON and press the [OK] button.
| |
Zoom Magnification |
| Still Pictures |
Movies |
| Optical Zoom |
5x
(28 mm - 140 mm equivalent in 35 mm photography) |
| Super-Resolution Zoom |
10x *1
(Up to 280 mm equivalent in 35 mm photography) |
| Digital Zoom |
4x *2 |
*1 From Wide to Zoom, including optical zoom range
*2 Use of both the optical zoom and digital zoom can provide approximately 20x zoom shooting.
Note:
- Zoom is fixed when shooting in super macro mode.
- Pictures taken with the digital zoom may appear grainy.
Question :
What comes bundled with the camera?
Answer:
The following items are bundled with the camera:
- TG-835 camera
- Lithium-ion Rechargeable Battery (LI-50B)
- USB Cable (CB-USB8)
- USB-AC adapter (F-2AC)
- Strap
- OLYMPUS Setup CD-ROM:
OLYMPUS Viewer 3 software (Windows / Mac)
- Instruction Manual
- Warranty Card
Question :
What type of memory card can I use with this model?
Answer:
This model is compatible with SD, SDHC and SDXC cards, including Eye-Fi and Flash Air cards.
xD-Picture Card™ and CompactFlash® media cannot be used.
Question :
Where can I find the instruction manual for my camera?
Answer:
You can find the manual online. You can either read it online or download the instruction manual for your camera.
See the following Web page to find the available manuals:
 Download Manuals
|
|
