Question :
What comes bundled with the camera?

Answer:
The following items are bundled with the camera:

• E-M10 camera
• Lithium-ion Rechargeable Battery (BLS-5)
• Lithium-ion Battery Charger (BCS-5)
• USB Cable (CB-USB6)
• Body Cap
• Shoulder Strap
• Olympus Setup CD-ROM:
  OLYMPUS Viewer 3 software (Windows / Mac)
• Instruction Manual
• Warranty Card

Question :
What are the differences between the E-M10, E-M1 and E-M5?

Answer:
The following table describes the differences:

Lens Mount	Micro Four Thirds Mount
Image Processor	TruePic VII		TruePic VI
Effective Pixels	16.05 million pixels	16.28 million pixels	16.05 million pixels
Sensor Type	4/3 High-speed Live MOS Sensor
Electronic Viewfinder (EVF)	1.44 million dots Field of view: 100% Magnification: 1.15x (maximum)	2.36 million dots Field of view: 100% Magnification: 1.48x (maximum)	1.44 million dots Field of view: 100% Magnification: 1.15x (maximum)
Monitor	3.0 inches, 3:2 Approx. 1,040,000 dots, Movable LCD		3.0 inches, 3:2 Approx. 610,000 dots Movable Organic EL monitor
Touch Panel	Available
Memory	SD Memory Card (SD, SDHC, SDXC (UHS-I compatible)), Eye-Fi card
Flash	Built-in	FL-LM2 (packaged with the camera)
Hot Shoe	Available
Accessory Port (AP2)	Not available	Available
Sequential Shooting (Sequential shooting H mode, maximum)	Approx. 8 fps	Approx. 10 fps	Approx. 9 fps
Movie	MOV (MPEG-4AVC / H.264) AVI (Motion JPEG)
HD Movie Compatibility	Full HD (1920 x 1080) shooting possible
AF System	High-speed imager AF (Contrast AF)	DUAL FAST AF (Contrast AF, Phase contrast AF) * Phase contrast AF is used when a Four Thirds lens is attached.	High-speed imager AF (Contrast AF)
AF Area	81 points	81 points (37 points when a Four Thirds lens is attached.)	35 points
Focus Modes	Single AF (S-AF), Continuous AF (C-AF), Manual Focus (MF), S-AF＋MF, AF tracking (C-AF＋TR), Full-time AF, Zoom frame AF/Zoom AF, Face priority AF/Pupil detection AF, Peaking function	Single AF (S-AF), Continuous AF (C-AF), Manual Focus (MF), S-AF＋MF, AF tracking (C-AF＋TR), Full-time AF, Zoom frame AF/Zoom AF, Face priority AF/Pupil detection AF, Peaking function	Single AF (S-AF), Continuous AF (C-AF), Manual Focus (MF), S-AF＋MF, AF tracking (C-AF＋TR), Full-time AF, Zoom frame AF/Zoom AF, Face priority AF/Pupil detection AF
ISO Sensitivity	Auto: ISO LOW (approx. 100) - 25600 (Customizable, Default: LOW - 1600) Manual: LOW, ISO 200 - 25600		Auto: ISO 200 - 25600 (Customizable, Default: ISO 200 - 1600) Manual: ISO 200 - 25600 * ISO LOW setting is available if you update the firmware of your camera to version 2.0 or later.
Shutter Speed	60 - 1 / 4000 sec.	60 - 1 / 8000 sec.	60 - 1 / 4000 sec.
Image Stabilization	3-axis stabilization	5-axis stabilization
Time Lapse Shooting, Multi Exposure	Multiple Exposure, Live BULB/Live TIME shooting, Interval shooting/Time Lapse Movie, Live composite photography, Movie+Photo Mode	Multiple Exposure, Live BULB/Live TIME shooting, Interval shooting/Time Lapse Movie	Multiple Exposure, Live BULB/Live TIME shooting
Art Filter	12 art filters		11 art filters
Photo Story	Available		Not available
Creative Control	Highlight & Shadow Multi Aspect Enlarged display ISO / White balance Color Creator	Highlight & Shadow Multi Aspect Enlarged display Color Creator	Highlight & Shadow Multi Aspect Enlarged display White balance
Multi Exposure	2 frames max.
Control Dial	2 dials
Function Lever	Not available	Available	Not available
Level Gauge	2-axis
Built-in Wi-Fi	Available		Not available
HDMI Output Connector	HDMI Micro Connector (Type D)
Menu Language	34 languages, including Japanese and English
Battery	BLS-5	BLN-1
Number of Storable Shots	Approx. 320 shots	Approx. 350 shots	Approx. 360 shots
Dustproof / Splashproof	Not available	Available
Body Material	Metallic sheath	Magnesium alloy
Weight	- Approx. 396 g (including battery and SD card, without eye-cup) - Approx. 350 g (body only)	- Approx. 497 g (including battery and SD card) - Approx. 443 g (body only)	- Approx. 425 g (including battery and SD card) - Approx. 373 g (body only)
Dimensions (excluding protrusions)	119.1 mm (W) × 82.3 mm (H) × 45.9 mm (D) / 4.7" (W) × 3.2" (H) × 1.8"(D)	130.4 mm (W) × 93.5 mm (H) × 63.1 mm (D) / 5.1" (W) × 3.7" (H) × 2.5" (D)	121.0 mm (W) × 89.6 mm (H) × 41.9 mm (D) / 4.8" (W) × 3.5" (H) × 1.6" (D)
Body Color	Silver Black	Black	Black Silver Elite Black
Power Battery Holder (Sold separately)	Not available	HLD-7	HLD-6
Grip (Sold separately)	ECG-1	Not available
Underwater Housing (Sold separately)	Not available	PT-EP11	PT-EP08
Release Date	Silver: February 2014 Black: March 2014	October 2013	March 2012 PRO Lens Kit: March 2014

Question :
What are the compression rates, and what size are the image files in each record mode?

Answer:
[Still Pictures]
The following table shows the approximate values when shooting still pictures in the 4:3 aspect ratio.

Record Mode		Number of Pixels	Compression Rate	File Format	Number of Storable Pictures 1GB SD / SDHC / SDXC Card	File Size (Approx.)
RAW		4608 × 3456	Lossless Compression	ORF	41	17.0 MB
L (Large)	SF (SuperFine)		1/2.7	JPEG	79	11.0 MB
	F (Fine)		1/4		114	7.5 MB
	N (Normal)		1/8		248	3.5 MB
	B (Basic)		1/12		369	2.4 MB
M (Middle)	SF	3200 × 2400	1/2.7		155	5.6 MB
	F		1/4		257	3.4 MB
	N		1/8		508	1.7 MB
	B		1/12		753	1.2 MB
	SF	2560 × 1920	1/2.7		271	3.2 MB
	F		1/4		398	2.2 MB
	N		1/8		782	1.1 MB
	B		1/12		1151	0.8 MB
	SF	1920 × 1440	1/2.7		476	1.8 MB
	F		1/4		701	1.3 MB
	N		1/8		1356	0.7 MB
	B		1/12		1968	0.5 MB
	SF	1600 × 1200	1/2.7		678	1.3 MB
	F		1/4		984	0.9 MB
	N		1/8		1906	0.5 MB
	B		1/12		2653	0.4 MB
S (Small)	SF	1280 × 960	1/2.7		1034	0.9 MB
	F		1/4		1488	0.6 MB
	N		1/8		2773	0.4 MB
	B		1/12		3813	0.3 MB
	SF	1024 × 768	1/2.7		1564	0.6 MB
	F		1/4		2260	0.4 MB
	N		1/8		4068	0.3 MB
	B		1/12		5547	0.2 MB
	SF	640 × 480	1/2.7		3589	0.3 MB
	F		1/4		5085	0.2 MB
	N		1/8		7627	0.2 MB
	B		1/12		10170	0.1 MB

[Movies]

Record Mode	Image Size	Frame Rate (frames per second)	Record Format	Recording Rate	Maximum Recording Time(approx.)
Full HD Fine	1920 × 1080 (16:9)	30p (29.97 fps) *2	MOV (MPEG-4AVC/H.264) *1	24Mbps	22 min. *1
Full HD Normal				17Mbps	29 min. *1
HD Fine	1280 × 720 (16:9)	30p (29.97 fps) *2		12Mbps	29 min. *1
HD Normal				8Mbps	29 min. *1
HD	1280 × 720 (16:9)	30 fps *3	AVI (Motion JPEG) *4	-	7 min. *4
SD	640 × 480 (4:3)			-	14 min. *4

• *1 The maximum file size of a movie is 4GB or 29 min.
• *2 The output of the image sensor is 30fps.
• *3 When shooting movies with an Art Filter, the frame rate varies based on the selected filter.
• *4 The maximum file size of a movie is 2 GB, 7 min. (in HD mode) or 14 min. (in SD mode).

Question :
Can I attach the camera grip ECG-1 to other OM-D cameras?

Answer:
The ECG-1 is a dedicated camera grip for E-M10.
You cannot attach the camera grip to other Olympus OM-D series digital SLR cameras.

Question :
What are the features of the electronic viewfinder?

Answer:
The following describes the main features of the electronic viewfinder:

• Eye level electronic viewfinder, Approx. 1,440,000 dots
• Field of view: 100%
• Maximum viewfinder magnification: approx. 1.15x (when viewfinder style 3 is selected)
• Eye point: approx. 20 mm (in -1 m -1)
• Diopter adjustment range: -4 to +2 m
• Eye sensor available
• Finder3: Select from 3 viewfinder styles
• Eyecup: Interchangeable, optional eyecup EP-13 (sold separately) is available

Question :
Is the Digital Tele-converter function available with any kind of lens attached?

Answer:
Yes, the Digital Tele-converter function can be used with every E-M10 attachable lens, because it is an in-camera function.

Question :
Is the E-M10 dustproof and splashproof?

Answer:
No, the E-M10 is not dustproof and splashproof.

Question :
Approximately how many shots can be taken with a fully-charged battery?

Answer:
You can take approximately 320 shots (when IS is On), according to the CIPA standard.
(using the bundled Lithium-ion Rechargeable battery BLS-5 and a 4 GB Toshiba Super High Speed Class 6 SDHC card)

Question :

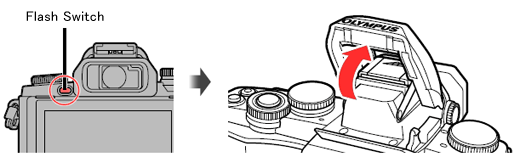

Does the flash automatically pop up when shooting in low light conditions?

Answer:
No, the flash will not automatically pop up.
Press the flash switch to use the flash unit.

Question :
What is the guide number for the built-in flash?

Answer:
The guide number (GN) for the E-M10 built-in flash is approximately 5.8 at ISO 100 (per meter) and approximately 8.2 at ISO 200 (per meter).

Question :

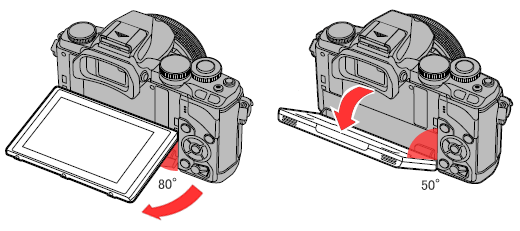

How far can I adjust the angle of the LCD monitor?

Answer:
The LCD monitor can be moved up and down.
You can tilt up the monitor to about 80-degree angle and tilt down to about 50-degree angle.

Question :
What type of memory card can I use with this model?

Answer:
This model is compatible with SD, SDHC and SDXC cards, including Eye-Fi cards.
xD-Picture Card™ and CompactFlash® media cannot be used.

Question :
Where can I find the instruction manual for my camera?

Answer:
You can find the manual online. You can either read it online or download the instruction manual for your camera.
See the following Web page to find the available manuals:

Download Manuals

Question :
My lens is not auto-focusing, what is the cause?

Answer:
In the micro four thirds lineup the following lenses, M. Zuiko ED 12-40mm f2.8 Pro, M. Zuiko 12mm f1.8, and M. Zuiko 17mm f1.8 have a function called Manual Focus Clutch Focusing. This ring controls whether the camera/lens is in MF (Manual Focus) or AF (Auto Focus). If you are using one of these lenses, grasp the focusing ring between your thumb and forefinger and push it toward the front of the lens. It will snap forward and set the focus mode to AF. If you pull it back to expose the Hyper focal scale it will be in Manual mode. Basically this allows for quick switching in situations where manual focus is better suited for the situation.

Question :
When recording movies I can hear the sound of the lens focusing, how can I reduce this sound?

Answer:
When recording sound in a movie, the sound made by the lens and camera operating may be recorded. This is due to the proximity of the microphone to the lens. If desired, you can reduce these sounds by shooting with [AF Mode] set to [S-AF], or by limiting the amount of times you press the buttons.

Question :
How many shots can be taken in time lapse photography and how long can I set its shooting interval?

Answer:
You can shoot up to 999 shots in time lapse photography and you can set its shooting interval between 1 second and 24 hours.
The following procedure explains how to set and shoot time lapse photography.

How to set time lapse photography

Time lapse function is selectable when using the P, A, S or M shooting mode.

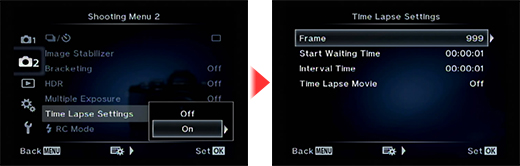

Press the [MENU] button. In Shooting Menu 2, select Time Lapse Settings and press the [OK] button. Select On and press the arrow pad Right button. Set the number of frames and interval to a desired value and press the [OK] button to complete the setting.

Frame
Sets the number of frames of time lapse photography. You can choose between 1 and 999 shots.

Start Waiting Time
Sets the time from pressing the shutter button until the first picture is taken. You can choose between 1 second and 24 hours.

Interval Time
Sets the shooting interval after the shooting starts. You can choose between 1second and 24 hours.

Time Lapse Movie
The sequence of time lapse photography can be converted to a movie. The image quality of the movie is M-JPEG HD and the frame rate is 10fps.
Off: Records each frame as a still picture.
On: Records each frame as a still picture and generates a time lapse movie.

How to take time lapse photography

When you set the time lapse photography to On, the icon for time lapse photography is displayed on the monitor. The number on the icon indicates the number of shots you can take.
Press the shutter button to start the time lapse photography.
